Gummed Tape Packing Station Setup: A Practical Guide

A gummed-tape station works only when the tape, dispenser, carton and operator routine fit together. Start with one representative carton and one defined setup, then document the settings before using the station for other box sizes. BrandTapeCo’s custom-printed water-activated kraft tape is available in 48 mm or 60 mm width, in standard 50 m rolls. The standard online minimum is five rolls per design and color configuration; other widths, including 72 mm, are not available.

Choose the tape and dispenser as one system

Record the dispenser make and model, its permitted tape width, roll diameter and core requirements, plus its water-activation and cut-length controls. A machine that accepts a 60 mm strip is not automatically compatible with every 60 mm roll. Ask the dispenser supplier about dimensions not stated in your tape order rather than guessing from a product photo.

Choose standard or reinforced kraft by checking your carton and handling conditions. Reinforcement can improve tear resistance, but it does not guarantee a good bond on a dusty, coated or unsuitable carton surface. A short application trial on the actual board is more useful than a generic strength claim.

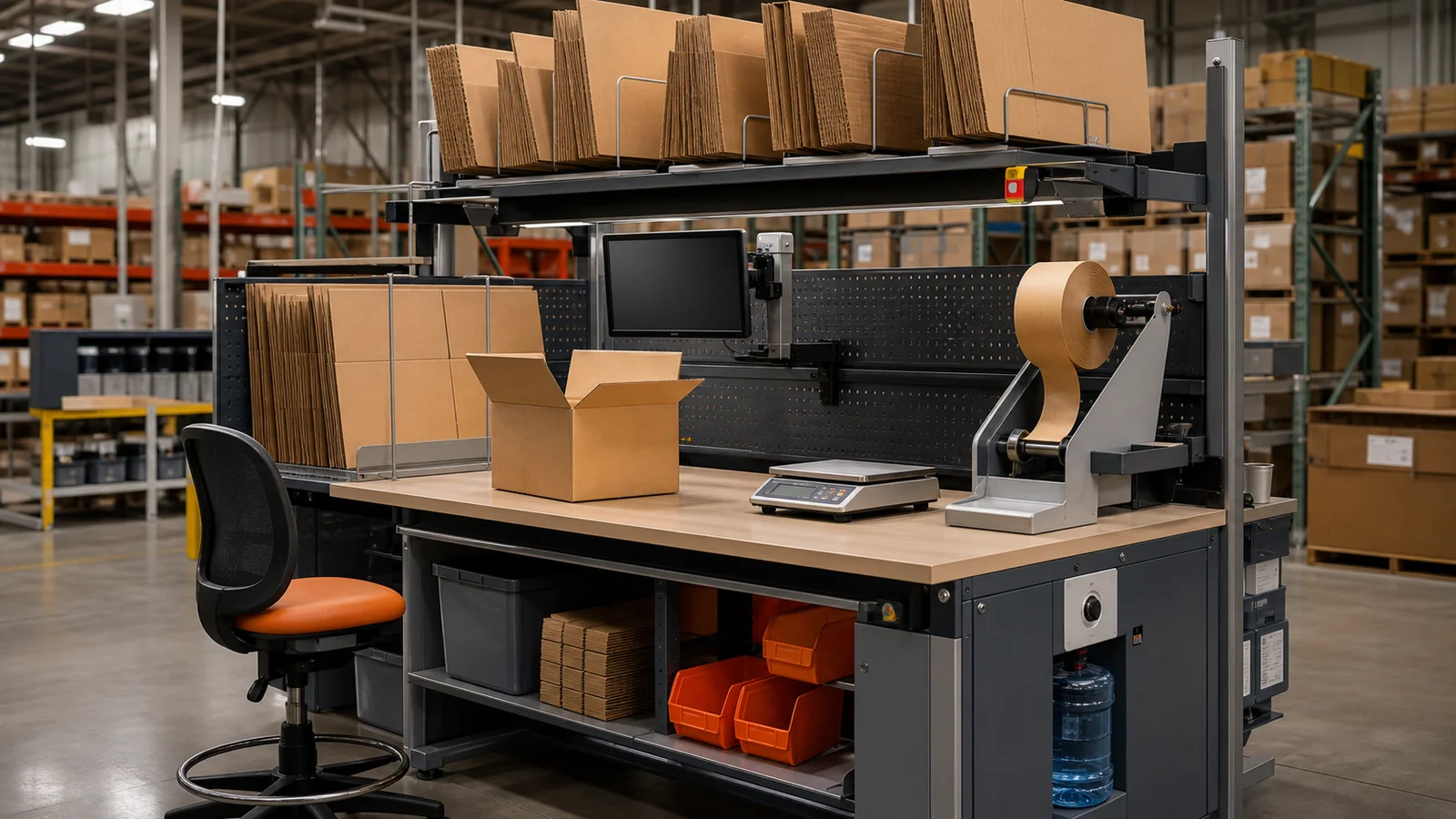

Lay out the station so each step is visible

1. Carton staging: keep the box size and seam to be sealed close to the dispenser, with enough clear space to fold the flaps consistently.
2. Tape feed and water: install the roll in the direction required by the dispenser and follow its instructions for water level, brush or pad condition, and activation. Do not change a machine setting solely because a printed logo looks different.
3. Cut length: set a strip length that reaches across the seam with the overlap required by your packing method. Check a real carton; do not infer the correct cut from the roll width.
4. Application: center the activated strip over the closed seam and press it down as directed by the equipment procedure. Watch for wrinkles, gaps or lifted ends.
5. Check and record: note the carton, tape construction, width, dispenser model, cut length, operator and any issue before increasing volume.

Run a small trial before making it the standard

Use the carton types you ship most often, including a small and a large box if both are common. Observe whether the strip covers the seam, feeds smoothly, cuts cleanly and stays in place under your normal handling. Let the seal develop according to the tape and dispenser instructions before judging the result. If a carton has a different coating, recycled-board surface or unusually heavy contents, evaluate it separately.

Change one variable at a time when troubleshooting. If the strip lifts, check carton dust and surface, water delivery and application pressure before assuming a wider tape would solve it. If the strip jams, inspect the dispenser’s roll and feed requirements. If the print is cut through awkwardly, adjust the artwork repeat or cut length only after checking that the seal still fits the carton.

Plan consumption with a measured cut length

Each standard roll contains 50 m of tape. For a planning example, a 0.5 m cut gives a theoretical 100 strips per roll. The usable count will be lower when setup, offcuts, resealing or multiple strips per box are included. Count actual strips and cartons during the trial, then use your measured rate for a reorder. Five standard rolls contain a nominal 250 m, but that is not a guarantee of how many boxes you can close.

Keep different artwork or colors separate in the inventory record. The five-roll online minimum applies to each selected design and color configuration, not to a mixed collection of five unrelated rolls. A roll length other than 50 m must be discussed with sales for feasibility and a separate written quote; a bespoke single roll may cost more than the entire standard five-roll order.

Make the handoff repeatable

For a specific application issue, use the water-activated tape troubleshooting guide. To check current standard options and prices, view the live custom tape product.
